Data Guard Physical Standby (19c) Setup on Linux 8.4 Using the Data Guard Broker - Part 2/3

VIII. Step 8: Oracle Database 19c Creation with DBCA for Data Guard Primary

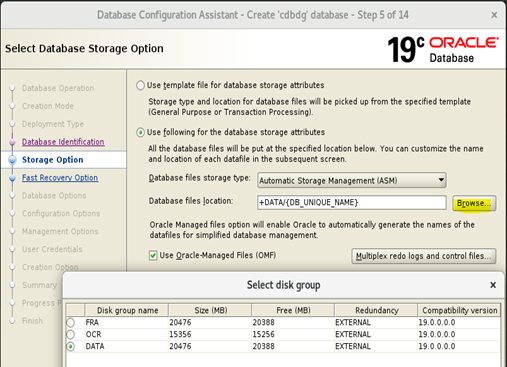

8.1 Create the database only on the primary database server: dbsrv1

Optionally: Database Express selected to be configured

8.2 Database Verification

IX. Step 9: Database servers configuration

9.1 Primary database server parameters changes

9.1.1 Enable Archiving

The primary server must run in archive log mode.

This is the basic requirement for primary to run in archive log mode. If it’s not in archive log mode, use below:

SQL> archive log list;

or

select log_mode from v$database;

LOG_MODE

------------

NOARCHIVELOG

SQL>

SYS@cdbdg> shutdown immediate

SYS@cdbdg> startup mount

SYS@cdbdg> alter database archivelog;

SYS@cdbdg> alter database open;

SYS@cdbdg> archive log list;

SYS@cdbdg> select log_mode from v$database;

LOG_MODE

------------

ARCHIVELOG

SYS@cdbdg>

9.1.2 Enable FORCE LOGGING

Enable force logging: In oracle, users can restrict redo generation for SQL by using NOLOGGING clause. This NOLOGGING transaction will be a problem for physical standby. Hence, we force logging so even user uses NOLOGGING clause, every SQL will be logged on to redo.

Enabled forced logging by issuing the following command.

SYS@cdbdg> select name, force_logging from v$database;

NAME FORCE_LOGGING

--------- --------------------------------

CDBDG NO

SYS@cdbdg> alter database force logging;

Database altered.

SYS@cdbdg> select name, force_logging from v$database;

NAME FORCE_LOGGING

--------- ---------------------------------

CDBDG YES

SYS@cdbdg> alter system switch logfile;

System altered.

SYS@cdbdg>

9.1.3 Set Standby file management to AUTO

Standby file management: We need to make sure whenever we add/drop datafile in primary database, those files are also added / dropped on standby.

Make sure the STANDBY_FILE_MANAGEMENT parameter is set to AUTO.

SYS@cdbdg> show parameter file_management

NAME TYPE VALUE

-------------------------- ------------ -------------------

standby_file_management string MANUAL

SYS@cdbdg>

SYS@cdbdg> alter system set standby_file_management=auto;

System altered.

SYS@cdbdg> show parameter file_management

NAME TYPE VALUE

--------------------------- ----------- ------------------

standby_file_management string AUTO

SYS@cdbdg>

9.1.4 Enable FLASHBACK

Enable flashback on primary: Flashback database is highly recommended because in case of failover, you need not re-create primary database from scratch.

If you want to use flashback database, enable it on the primary now, so it will be

enabled on the standby also. It's very useful in case of Failover, to quickly reinstate the database. Otherwise, you have to manually recreate the standby again.

SYS@cdbdg> select FLASHBACK_ON from v$database;

FLASHBACK_ON

------------------

NO

SYS@cdbdg> alter database flashback on;

Database altered.

SYS@cdbdg> select FLASHBACK_ON from v$database;

FLASHBACK_ON

------------------

YES

SYS@cdbdg>

9.1.5 Check DB_RECOVERY_FILE_DEST_SIZE

SYS@cdbdg> show parameter db_recovery_file_dest_size

NAME TYPE VALUE

-------------------------- ----------- ---------------------

db_recovery_file_dest_size big integer 12732M

SYS@cdbdg>

9.1.6 DB_NAME, DB_UNIQUE_NAME

Here both are set to "cdbdg" on the primary database.

SYS@cdbdg> show parameter db_name

NAME TYPE VALUE

----------------------- ----------- ----------------

db_name string cdbdg

SYS@cdbdg>

SYS@cdbdg> show parameter db_unique_name

NAME TYPE VALUE

----------------------- ----------- ----------------

db_unique_name string cdbdg

SYS@cdbdg>

NOTE: The DB_NAME of the standby database will be the same as that of the primary, but it must have a different DB_UNIQUE_NAME value. For this example, the standby database will have the value "cdbdg_stby".

9.1.7 LOG_ARCHIVE_CONFIG

SYS@cdbdg> show parameter log_archive_config

NAME TYPE VALUE

---------------------- ----------- -------------------

log_archive_config string

SYS@cdbdg>

SYS@cdbdg> alter system set

log_archive_config='dg_config=(cdbdg,cdbdg_stby)';

System altered.

SYS@cdbdg> show parameter log_archive_config

NAME TYPE VALUE

----------------------- ----------- ------------------------------

log_archive_config string dg_config=(cdbdg,cdbdg_stby)

SYS@cdbdg>

9.1.8 FAL_CLIENT, FAL_SERVER

FAL stets for Fetch Archive Log)

SYS@cdbdg> show parameter fal

NAME TYPE VALUE

-------------------- ----------- -----------------------

fal_client string

fal_server string

SYS@cdbdg>

SYS@cdbdg> alter system set fal_client='cdbdg';

System altered.

SYS@cdbdg> alter system set fal_server='cdbdg_stby';

System altered.

SYS@cdbdg> show parameter fal

NAME TYPE VALUE

------------------- ----------- -----------------------

fal_client string cdbdg

fal_server string cdbdg_stby

SYS@cdbdg>

9.1.9 LOG_ARCHIVE_FORMATEnable Archiving

SYS@cdbdg> show parameter log_archive_format

NAME TYPE VALUE

-------------------- ----------- -----------------------

log_archive_format string %t_%s_%r.dbf

SYS@cdbdg>

SYS@cdbdg> alter system set log_archive_format='%t_%s_%r.arc'

scope=spfile;

System altered.

9.1.10 REMOTE_LOGIN_PASSWORDFILE

This parameter should be set to EXCLUSIVE, which ist he default

SYS@cdbdg> show parameter remote_login_passwordfile

NAME TYPE VALUE

---------------------------- ----------- -----------------

remote_login_passwordfile string EXCLUSIVE

SYS@cdbdg>

9.2 Configure Standby redo log files

These files will be used during switchover/failover operations. The standby redo logs should be at least as big as the largest online redo log and there should be one extra group per thread compared the online redo logs.

Thus: number of standby redo logs = number of online redo logs + 1

First, you have to determine the number oft he redo log files and their size. Then,

SYS@cdbdg> set lines 150

SYS@cdbdg> col FILE_NAME for a55

SYS@cdbdg> SELECT a.GROUP#, a.THREAD#, a.SEQUENCE#, a.ARCHIVED,

2 a.STATUS, b.MEMBER AS FILE_NAME,

3 (a.BYTES/1024/1024) AS SIZE_MB

4 FROM v$log a

5 JOIN v$logfile b ON a.Group#=b.Group#

6 ORDER BY a.GROUP#;

Then add the standby redo logs. Here, I have added multiplexed redo log files, but however, this is not necessary. Only 4 would be enough.

ALTER DATABASE ADD STANDBY LOGFILE GROUP 4 ('+DATA','+FRA') SIZE 200M;

ALTER DATABASE ADD STANDBY LOGFILE GROUP 5 ('+DATA','+FRA') SIZE 200M;

ALTER DATABASE ADD STANDBY LOGFILE GROUP 6 ('+DATA','+FRA') SIZE 200M;

ALTER DATABASE ADD STANDBY LOGFILE GROUP 7 ('+DATA','+FRA') SIZE 200M;

SYS@cdbdg> ALTER DATABASE ADD STANDBY LOGFILE GROUP 4

('+DATA','+FRA') SIZE 200M;

Database altered.

SYS@cdbdg> ALTER DATABASE ADD STANDBY LOGFILE GROUP 5

('+DATA','+FRA') SIZE 200M;

Database altered.

SYS@cdbdg> ALTER DATABASE ADD STANDBY LOGFILE GROUP 6

('+DATA','+FRA') SIZE 200M;

Database altered.

SYS@cdbdg> ALTER DATABASE ADD STANDBY LOGFILE GROUP 7

('+DATA','+FRA') SIZE 200M;

Database altered.

SYS@cdbdg>

Check the standby log files via below query

SYS@cdbdg> SELECT GROUP#,THREAD#,SEQUENCE#,ARCHIVED,STATUS FROM

V$STANDBY_LOG;

GROUP# THREAD# SEQUENCE# ARC STATUS

---------- ---------- ---------- ---- ----------

4 0 0 YES UNASSIGNED

5 0 0 YES UNASSIGNED

6 0 0 YES UNASSIGNED

7 0 0 YES UNASSIGNED

9.3 Create or scp the password file to the standby server

Create a password file, with the SYS password matching that of the primary database.

Scp the password file to the standby site or create a new one. Both password files should be identical. This is needed for cloning purpose.

Create a backup password file or scp the file from primary

[oracle@dbsrv1 dbs]$ pwd

/u01/app/oracle/product/19.3.0/db_1/dbs

[oracle@dbsrv1 dbs]$

[oracle@dbsrv1 dbs]$ ls -lrt orapwcdbdg

-rw-r-----. 1 oracle oinstall 2048 Oct 22 23:24 orapwcdbdg

[oracle@dbsrv1 dbs]$

[oracle@dbsrv1 dbs]$ scp orapwcdbdg dbsrv2:/u01/app/oracle/product/19.3.0/db_1/dbs/

oracle@dbsrv2's password:

orapwcdbdg 100% 2048 2.4MB/s 00:00

[oracle@dbsrv1 dbs]$

9.4 Network Service Setup

Entries for the primary and standby databases are needed in the "$ORACLE_HOME/network/admin/tnsnames.ora" files on both servers. You can create these using the Network Configuration Utility (netca) or manually. The following entries were used during this setup.

NOTE: Notice the use of the SID, rather than the SERVICE_NAME in the entries. This is important as the broker will need to connect to the databases when they are down, so the services will not be present.

Since grid infrastructure for Oracle Restart is running, do not stop and start the listener using lsnrctl stop/start. Use srvctl stop/start listener from the grid home.

If its a Dataguard Environment or you used Auxiliary channel for RMAN

In Some cases we need to overcome with this problem like dataguard configuration. In which our standby database is in recover mode means it’s in mounted state for apply the redo logs of primary database. In that case listener status for service is Blocked or RESTRICTED. To overcome from it we used the following parameter in tnsnames.ora file: (UR=A) clause is used for TNS connect strings has been created as an enhancement.*(UR=A)* clause is intended to work with a dynamically registered handler so the use of SERVICE_NAME versus SID is preferred. (ID 362656.1)

tnsnames.ora: Use below tns entries and put them under oracle user:

$ORACLE_HOME/ /network/admin/tnsnames.ora.

[oracle@dbsrv1 admin]$ pwd

/u01/app/oracle/product/19.3.0/db_1/network/admin

[oracle@dbsrv1 admin]$ cat tnsnames.ora

cdbdg =

(DESCRIPTION =

(ADDRESS_LIST =

(ADDRESS = (PROTOCOL = TCP)(HOST = dbsrv1)(PORT = 1521))

)

(CONNECT_DATA =

(SID = cdbdg)

)

)

cdbdg_stby =

(DESCRIPTION =

(ADDRESS_LIST =

(ADDRESS = (PROTOCOL = TCP)(HOST = dbsrv2)(PORT = 1521))

)

(CONNECT_DATA =

(SID = cdbdg)

)

)

[oracle@dbsrv1 admin]$ ls -l

Scp the tnsnames.ora to the standby site

[oracle@dbsrv1 admin]$

[oracle@dbsrv1 admin]$ scp tnsnames.ora dbsrv2:/u01/app/oracle/product/19.3.0/db_1/network/admin

oracle@dbsrv2's password:

tnsnames.ora 100% 334 308.8KB/s 00:00

[oracle@dbsrv1 admin]$

listener.ora: Switch to grid user or oracle user with grid infrastructure home properly set. Add the entries for static listener.

[oracle@dbsrv1 ~]$ . grid_env

[oracle@dbsrv1 ~]$ env | grep ORA

ORACLE_UNQNAME=cdbdg

ORACLE_SID=+ASM

ORACLE_BASE=/u01/app/oracle

ORACLE_HOME=/u01/app/19.3.0/grid

ORACLE_TERM=xterm

ORACLE_HOSTNAME=dbsrv1.localdomain

[oracle@dbsrv1 ~]$

oracle@dbsrv1 ~]$ cd $ORACLE_HOME/network/admin

[oracle@dbsrv1 admin]$ pwd

/u01/app/19.3.0/grid/network/admin

[oracle@dbsrv1 admin]$ cat listener.ora

#Backup file is /u01/app/oracle/crsdata/dbsrv1/output/listener.ora.bak.dbsrv1.oracle line added by Agent

LISTENER=(DESCRIPTION=(ADDRESS_LIST=(ADDRESS=(PROTOCOL=IPC)(KEY=LISTENER)))) # line added by Agent

ENABLE_GLOBAL_DYNAMIC_ENDPOINT_LISTENER=ON # line added by Agent

VALID_NODE_CHECKING_REGISTRATION_LISTENER=ON # line added by Agent

# Added for Data Guard setup

LISTENER =

(DESCRIPTION_LIST =

(DESCRIPTION =

(ADDRESS = (PROTOCOL = TCP)(HOST = dbsrv1)(PORT = 1521))

(ADDRESS = (PROTOCOL = IPC)(KEY = EXTPROC1521))

)

)

SID_LIST_LISTENER=

(SID_LIST=

(SID_DESC=

(GLOBAL_DBNAME=cdbdg)

(SID_NAME=cdbdg)

(ORACLE_HOME=/u01/app/oracle/product/19.3.0/db_1)

(ENVS="TNS_ADMIN=/u01/app/oracle/product/19.3.0/db_1/network/admin")

)

(SID_DESC=

(GLOBAL_DBNAME=cdbdg_DGMGRL)

(SID_NAME=cdbdg)

(ORACLE_HOME=/u01/app/oracle/product/19.3.0/db_1)

(ENVS="TNS_ADMIN=/u01/app/oracle/product/19.3.0/db_1/network/admin")

)

)

ADR_BASE_LISTENER = /u01/app/oracle

[oracle@dbsrv1 admin]$

Bounce/Restart the listener in the grid environment and check the status and services.

[oracle@dbsrv1 admin]$ pwd

/u01/app/19.3.0/grid/network/admin

[oracle@dbsrv1 admin]$ srvctl stop listener

[oracle@dbsrv1 admin]$ srvctl start listener

[oracle@dbsrv1 admin]$ lsnrctl status

[oracle@dbsrv1 admin]$ lsnrctl services

9.5 Standby database server parameters configuration

9.5.1 Verify the existence of the password file

[oracle@dbsrv2 ~]$ cd $ORACLE_HOME/dbs

[oracle@dbsrv2 dbs]$ ls -l orapwcdbdg

-rw-r-----. 1 oracle oinstall 2048 Oct 25 10:54 orapwcdbdg

[oracle@dbsrv2 dbs]$

9.5.2 Temporary initxxx.ora parameter file

Create a parameter file for the standby database called "initcdbdg_stby.ora" with the following contents: *.db_name='cdbdg', where ever you want:

[oracle@dbsrv2 ~]$ pwd

/home/oracle

[oracle@dbsrv2 ~]$ cat initcdbdg_stby.ora

*.db_name='cdbdg'

[oracle@dbsrv2 ~]$

9.5.3 File System and ASM diskgroups directories-dependent parameters

Get the list of directory-dependent parameters on the primary database and create the same directories on the standby server on the file system and in ASM.

select name, value from v$parameter where upper(value) like upper(‘%/cdbdg/%‘);

SYS@cdbdg> col NAME format a25

SYS@cdbdg> col VALUE format a70

SYS@cdbdg> select name, value from v$parameter where upper(value) like upper('%/cdbdg/%');

NAME VALUE

------------------------- ------------------------------------------

spfile +DATA/CDBDG/PARAMETERFILE/spfile.269.1086651125

control_files +DATA/CDBDG/CONTROLFILE/current.260.1086650663,

+FRA/CDBDG/CONTROLFILE/current.256.1086650663

core_dump_dest /u01/app/oracle/diag/rdbms/cdbdg/cdbdg/cdump

audit_file_dest /u01/app/oracle/admin/cdbdg/adump

Create cdbdg and subdirectories like adump and others.

[oracle@dbsrv2 admin]$ pwd

/u01/app/oracle/admin

[oracle@dbsrv2 admin]$ mkdir cd cdbdg cdbdg_stby

[oracle@dbsrv2 admin]$ cd cdbdg/

[oracle@dbsrv2 cdbdg]$ mkdir adump dpdump pfile scripts xdb_wallet

[oracle@dbsrv2 cdbdg]$

[oracle@dbsrv2 cdbdg]$ ls -l

[oracle@dbsrv2 cdbdg]$

[oracle@dbsrv2 cdbdg]$ cd ../cdbdg_stby

[oracle@dbsrv2 cdbdg_stby]$ mkdir adump dpdump pfile scripts xdb_wallet

[oracle@dbsrv2 cdbdg_stby]

On file system as oracle user with properly set environment variables

[oracle@dbsrv2 ~]$ ls -l /u01/app/oracle/admin/cdbdg/adump

total 0

[oracle@dbsrv2 rdbms]$ pwd

/u01/app/oracle/diag/rdbms

[oracle@dbsrv2 rdbms]$ ls -l

total 0

drwxr-xr-x. 3 oracle oinstall 19 Oct 24 22:48 cdbdg

drwxr-xr-x. 3 oracle oinstall 24 Oct 24 22:48 cdbdg_stby

[oracle@dbsrv2 rdbms]$ ls -l cdbdg

total 0

drwxr-xr-x. 2 oracle oinstall 6 Oct 24 22:48 cdbdg

[oracle@dbsrv2 rdbms]$

[oracle@dbsrv2 rdbms]$ ls -l cdbdg_stby/

total 0

drwxr-xr-x. 2 oracle oinstall 6 Oct 24 22:48 cdbdg_stby

[oracle@dbsrv2 rdbms]$

In ASM: as oracle user with grid environment set, in order to use asmcmd command

(Alternatively, verify ASM diskgroups and Naming structures on primary and create them on the standby side).

oracle@dbsrv1 ~]$ which asmcmd

/u01/app/19.3.0/grid/bin/asmcmd

[oracle@dbsrv1 ~]$

[oracle@dbsrv1 ~]$ asmcmd -p

ASMCMD [+] > ls -l

State Type Rebal Name

MOUNTED EXTERN N DATA/

MOUNTED EXTERN N FRA/

MOUNTED EXTERN N OCR/

ASMCMD [+] >

ASMCMD [+] > ls -l DATA

ASMCMD [+] > ls -l FRA

Create same directories on standby. I created one with db_name (CDBDG) and what with db_unique_name (CDBDG_STBY) in +DATA and +FRA, not in +OCR because this diskgroup is only for ASM internal use.

[oracle@dbsrv2 ~]$ which asmcmd

/u01/app/19.3.0/grid/bin/asmcmd

[oracle@dbsrv2 ~]$

[oracle@dbsrv2 ~]$ asmcmd -p

ASMCMD [+] >

ASMCMD [+] > ls -l

State Type Rebal Name

MOUNTED EXTERN N DATA/

MOUNTED EXTERN N FRA/

MOUNTED EXTERN N OCR/

ASMCMD [+] >

ASMCMD [+] > cd DATA

ASMCMD [+DATA] > ls -l

ASMCMD [+DATA] >

ASMCMD [+DATA] > mkdir CDBDG

ASMCMD [+DATA] > mkdir CDBDG_STBY

ASMCMD [+DATA] >

ASMCMD [+DATA] > cd CDBDG

ASMCMD [+DATA/CDBDG] > ls -l

ASMCMD [+DATA/CDBDG] > mkdir CONTROLFILE

ASMCMD [+DATA/CDBDG] > mkdir DATAFILE

ASMCMD [+DATA/CDBDG] > mkdir ONLINELOG

ASMCMD [+DATA/CDBDG] > mkdir PARAMETERFILE

ASMCMD [+DATA/CDBDG] > mkdir TEMPFILE

ASMCMD [+DATA/CDBDG] >

ASMCMD [+DATA/CDBDG] > ls -l

ASMCMD [+DATA] > cd CDBDG_STBY

ASMCMD [+DATA/CDBDG_STBY] >

ASMCMD [+DATA/CDBDG_STBY] > ls -l

ASMCMD [+DATA/CDBDG_STBY] >

ASMCMD [+DATA/CDBDG_STBY] > mkdir CONTROLFILE DATAFILE ONLINELOG

........ ..........

ASMCMD [+FRA] > mkdir CDBDG

ASMCMD [+FRA] > mkdir CDBDG_STBY

ASMCMD [+FRA] > cd CDBDG

ASMCMD [+FRA/CDBDG] > ls -l

ASMCMD [+FRA/CDBDG] > mkdir ARCHIVELOG AUTOBACKUP CONTROLFILE FLASHBACK

ASMCMD [+FRA/CDBDG_STBY] > mkdir ARCHIVELOG AUTOBACKUP CONTROLFILE F

ASMCMD [+FRA/CDBDG_STBY] > cd ......

ASMCMD [+FRA] > cd ..

ASMCMD [+] > ls -l

State Type Rebal Name

MOUNTED EXTERN N DATA/

MOUNTED EXTERN N FRA/

MOUNTED EXTERN N OCR/

ASMCMD [+] > exit

9.5.4 Network Service Setup Standby

tnsnames.ora: Use below tns entries and put them under oracle user:

$ORACLE_HOME/ /network/admin/tnsnames.ora.

[oracle@dbsrv2 admin]$ env | grep ORA

ORACLE_UNQNAME=cdbdg_stdby

ORACLE_SID=cdbdg

ORACLE_BASE=/u01/app/oracle

ORACLE_HOME=/u01/app/oracle/product/19.3.0/db_1

ORACLE_TERM=xterm

ORACLE_HOSTNAME=dbsrv2.localdomain

[oracle@dbsrv2 admin]$

[oracle@dbsrv2 admin]$ pwd

/u01/app/oracle/product/19.3.0/db_1/network/admin

[oracle@dbsrv2 admin]$

[oracle@dbsrv2 admin]$ cat tnsnames.ora

cdbdg =

(DESCRIPTION =

(ADDRESS_LIST =

(ADDRESS = (PROTOCOL = TCP)(HOST = dbsrv1)(PORT = 1521))

)

(CONNECT_DATA =

(SID = cdbdg)

)

)

cdbdg_stby =

(DESCRIPTION =

(ADDRESS_LIST =

(ADDRESS = (PROTOCOL = TCP)(HOST = dbsrv2)(PORT = 1521))

)

(CONNECT_DATA =

(SID = cdbdg)

)

)

[oracle@dbsrv2 admin]$

listener.ora: Switch to grid user or oracle user with grid infrastructure home properly set. Add the entries for static listener.

[oracle@dbsrv2 admin]$ env | grep ORA

ORACLE_UNQNAME=CDBDG

ORACLE_SID=+ASM

ORACLE_BASE=/u01/app/oracle

ORACLE_HOME=/u01/app/19.3.0/grid

ORACLE_TERM=xterm

ORACLE_HOSTNAME=dbsrv2.localdomain

[oracle@dbsrv2 admin]$

[oracle@dbsrv2 admin]$ pwd

/u01/app/19.3.0/grid/network/admin

[oracle@dbsrv2 admin]$

[oracle@dbsrv2 admin]$ cat listener.ora

#Backup file is /u01/app/oracle/crsdata/dbsrv2/output/listener.ora.bak.dbsrv2.oracle line added by Agent

LISTENER=(DESCRIPTION=(ADDRESS_LIST=(ADDRESS=(PROTOCOL=IPC)(KEY=LISTENER)))) # line added by Agent

ENABLE_GLOBAL_DYNAMIC_ENDPOINT_LISTENER=ON # line added by Agent

VALID_NODE_CHECKING_REGISTRATION_LISTENER=ON # line added by Agent

LISTENER =

(DESCRIPTION_LIST =

(DESCRIPTION =

(ADDRESS = (PROTOCOL = TCP)(HOST = dbsrv2)(PORT = 1521))

(ADDRESS = (PROTOCOL = IPC)(KEY = EXTPROC1521))

)

)

SID_LIST_LISTENER=

(SID_LIST=

(SID_DESC=

(GLOBAL_DBNAME=cdbdg_stby)

(SID_NAME=cdbdg)

(ORACLE_HOME=/u01/app/oracle/product/19.3.0/db_1)

(ENVS="TNS_ADMIN=/u01/app/oracle/product/19.3.0/db_1/network/admin")

)

(SID_DESC=

(GLOBAL_DBNAME=cdbdg_stby_DGMGRL)

(SID_NAME=cdbdg)

(ORACLE_HOME=/u01/app/oracle/product/19.3.0/db_1)

(ENVS="TNS_ADMIN=/u01/app/oracle/product/19.3.0/db_1/network/admin")

)

)

ADR_BASE_LISTENER = /u01/app/oracle

[oracle@dbsrv2 admin]$

9.6 TNSPING - Connection test between primary and standby

tnsping from primary site:

[oracle@dbsrv1 admin]$ tnsping cdbdg

TNS Ping Utility for Linux: Version 19.0.0.0.0 - Production on 23-OCT-2021 19:49:29

Copyright (c) 1997, 2019, Oracle. All rights reserved.

Used parameter files:

Used TNSNAMES adapter to resolve the alias

Attempting to contact (DESCRIPTION = (ADDRESS_LIST = (ADDRESS = (PROTOCOL = TCP)(HOST = dbsrv1)(PORT = 1521))) (CONNECT_DATA = (SID = cdbdg)))

OK (0 msec)

[oracle@dbsrv1 admin]$

[oracle@dbsrv1 admin]$ tnsping cdbdg_stby

TNS Ping Utility for Linux: Version 19.0.0.0.0 - Production on 23-OCT-2021 19:49:33

Copyright (c) 1997, 2019, Oracle. All rights reserved.

Used parameter files:

Used TNSNAMES adapter to resolve the alias

Attempting to contact (DESCRIPTION = (ADDRESS_LIST = (ADDRESS = (PROTOCOL = TCP)(HOST = dbsrv2)(PORT = 1521))) (CONNECT_DATA = (SID = cdbdg)))

OK (10 msec)

[oracle@dbsrv1 admin]$

tnsping from standby site:

[oracle@dbsrv2 admin]$ pwd

/u01/app/oracle/product/19.3.0/db_1/network/admin

[oracle@dbsrv2 admin]$

[oracle@dbsrv2 admin]$ tnsping cdbdg

TNS Ping Utility for Linux: Version 19.0.0.0.0 - Production on 23-OCT-2021 20:08:55

Copyright (c) 1997, 2019, Oracle. All rights reserved.

Used parameter files:

Used TNSNAMES adapter to resolve the alias

Attempting to contact (DESCRIPTION = (ADDRESS_LIST = (ADDRESS = (PROTOCOL = TCP)(HOST = dbsrv1)(PORT = 1521))) (CONNECT_DATA = (SID = cdbdg)))

OK (0 msec)

[oracle@dbsrv2 admin]$

[oracle@dbsrv2 admin]$ tnsping cdbdg_stby

TNS Ping Utility for Linux: Version 19.0.0.0.0 - Production on 23-OCT-2021 20:09:01

Copyright (c) 1997, 2019, Oracle. All rights reserved.

Used parameter files:

Used TNSNAMES adapter to resolve the alias

Attempting to contact (DESCRIPTION = (ADDRESS_LIST = (ADDRESS = (PROTOCOL = TCP)(HOST = dbsrv2)(PORT = 1521))) (CONNECT_DATA = (SID = cdbdg)))

OK (0 msec)

[oracle@dbsrv2 admin]$

Now both servers are ready for DUPLICATE, to create a physical standby.

X. Step 10: Create the physical standby using rman DUPLICATE

10.1 Start the standby database in NOMOUNT

[oracle@dbsrv2 ~]$ sqlplus / as sysdba

SQL*Plus: Release 19.0.0.0.0 - Production on Mon Oct 25 10:24:49 2021

Version 19.3.0.0.0

Copyright (c) 1982, 2019, Oracle. All rights reserved.

Connected to an idle instance.

SQL> startup nomount pfile='/home/oracle/initcdbdg_stby.ora';

ORACLE instance started.

Total System Global Area 306183456 bytes

Fixed Size 8895776 bytes

Variable Size 239075328 bytes

Database Buffers 50331648 bytes

Redo Buffers 7880704 bytes

SQL> exit

10.2 Connect to RMAN and run the DUPLICATE command

[oracle@dbsrv2 ~]$ . db_env

[oracle@dbsrv2 ~]$ ps -ef | grep pmon

oracle 4474 1 0 08:44 ? 00:00:00 asm_pmon_+ASM

oracle 10193 3729 0 10:25 ? 00:00:00 ora_pmon_cdbdg

oracle 10332 10268 0 10:27 pts/1 00:00:00 grep --color=auto pmon

[oracle@dbsrv2 ~]$

[oracle@dbsrv2 ~]$ which rman

/u01/app/oracle/product/19.3.0/db_1/bin/rman

[oracle@dbsrv2 ~]$

[oracle@dbsrv2 ~]$ rman TARGET sys/oracle_4U@cdbdg AUXILIARY sys/oracle_4U@cdbdg_stby

Recovery Manager: Release 19.0.0.0.0 - Production on Mon Oct 25 10:32:09 2021

Version 19.3.0.0.0

Copyright (c) 1982, 2019, Oracle and/or its affiliates. All rights reserved.

connected to target database: CDBDG (DBID=704795239)

connected to auxiliary database: CDBDG (not mounted)

RMAN> run {

allocate channel prmy1 type disk;

allocate channel prmy2 type disk;

allocate channel prmy3 type disk;

allocate channel prmy4 type disk;

allocate auxiliary channel stby type disk;

duplicate target database for standby from active database

dorecover

spfile

set db_unique_name='cdbdg_stby' COMMENT 'Is standby'

set fal_client='cdbdg_stby'

set fal_server='cdbdg'

set log_archive_config='dg_config=(cdbdg,cdbdg_stby)'

set standby_file_management='AUTO'

set log_file_name_convert='/cdbdg/','/cdbdg_stby/'

set db_file_name_convert='/cdbdg/','/cdbdg_stby/'

set log_archive_dest_2='service=cdbdg ASYNC valid_for=(ONLINE_LOGFILE,PRIMARY_ROLE) db_unique_name=cdbdg';

}2> 3> 4> 5> 6> 7> 8> 9> 10> 11> 12> 13> 14> 15> 16> 17> 18>

using target database control file instead of recovery catalog

allocated channel: prmy1

channel prmy1: SID=274 device type=DISK

allocated channel: prmy2

channel prmy2: SID=149 device type=DISK

allocated channel: prmy3

channel prmy3: SID=275 device type=DISK

allocated channel: prmy4

channel prmy4: SID=401 device type=DISK

allocated channel: stby

channel stby: SID=293 device type=DISK

Starting Duplicate Db at 25.10.2021 10:54:10

current log archived

contents of Memory Script:

{

backup as copy reuse

passwordfile auxiliary format '/u01/app/oracle/product/19.3.0/db_1/dbs/orapwcdbdg' targetfile

'+DATA/CDBDG/PARAMETERFILE/spfile.269.1086651125' auxiliary format

'/u01/app/oracle/product/19.3.0/db_1/dbs/spfilecdbdg.ora' ;

sql clone "alter system set spfile= ''/u01/app/oracle/product/19.3.0/db_1/dbs/spfilecdbdg.ora''";

}

executing Memory Script

Starting backup at 25.10.2021 10:54:11

Finished backup at 25.10.2021 10:54:14

sql statement: alter system set spfile= ''/u01/app/oracle/product/19.3.0/db_1/dbs/spfilecdbdg.ora''

contents of Memory Script:

{

sql clone "alter system set db_unique_name =

''cdbdg_stby'' comment=

''Is standby'' scope=spfile";

sql clone "alter system set fal_client =

''cdbdg_stby'' comment=

'''' scope=spfile";

......

Finished backup at 25.10.2021 10:56:42

searching for all files that match the pattern +FRA/CDBDG_STBY/ARCHIVELOG

List of Files Unknown to the Database

=====================================

File Name: +FRA/CDBDG_STBY/ARCHIVELOG/2021_10_25/thread_1_seq_12.258.1086865001

File Name: +FRA/CDBDG_STBY/ARCHIVELOG/2021_10_25/thread_1_seq_13.259.1086865001

cataloging files...

cataloging done

List of Cataloged Files

=======================

File Name: +FRA/CDBDG_STBY/ARCHIVELOG/2021_10_25/thread_1_seq_12.258.1086865001

File Name: +FRA/CDBDG_STBY/ARCHIVELOG/2021_10_25/thread_1_seq_13.259.1086865001

....

contents of Memory Script:

{

set until scn 2411433;

recover

standby

clone database

delete archivelog

;

}

executing Memory Script

executing command: SET until clause

Starting recover at 25.10.2021 10:56:43

starting media recovery

archived log for thread 1 with sequence 12 is already on disk as file +FRA/CDBDG_STBY/ARCHIVELOG/2021_10_25/thread_1_seq_12.258.1086865001

archived log for thread 1 with sequence 13 is already on disk as file +FRA/CDBDG_STBY/ARCHIVELOG/2021_10_25/thread_1_seq_13.259.1086865001

archived log file name=+FRA/CDBDG_STBY/ARCHIVELOG/2021_10_25/thread_1_seq_12.258.1086865001 thread=1 sequence=12

archived log file name=+FRA/CDBDG_STBY/ARCHIVELOG/2021_10_25/thread_1_seq_13.259.1086865001 thread=1 sequence=13

media recovery complete, elapsed time: 00:00:00

Finished recover at 25.10.2021 10:56:44

contents of Memory Script:

{

delete clone force archivelog all;

}

executing Memory Script

deleted archived log

archived log file name=+FRA/CDBDG_STBY/ARCHIVELOG/2021_10_25/thread_1_seq_12.258.1086865001 RECID=1 STAMP=1086865002

deleted archived log

archived log file name=+FRA/CDBDG_STBY/ARCHIVELOG/2021_10_25/thread_1_seq_13.259.1086865001 RECID=2 STAMP=1086865002

Deleted 2 objects

Finished Duplicate Db at 25.10.2021 10:56:47

released channel: prmy1

released channel: prmy2

released channel: prmy3

released channel: prmy4

released channel: stby

RMAN>

NOTE: A brief explanation of the individual clauses is shown below.

FOR STANDBY: This tells the DUPLICATE command is to be used for a standby, so it will not force a DBID change.

FROM ACTIVE DATABASE: The DUPLICATE will be created directly from the source datafiles, without an additional backup step.

DORECOVER: The DUPLICATE will include the recovery step, bringing the standby up to the current point in time.

SPFILE: Allows us to reset values in the spfile when it is copied from the source server.

NOFILENAMECHECK: Destination file locations are not checked.

Once the command is complete, you can start applying process, configuring and using the broker.

10.3 Post DUPLICATE steps

10.3.1 Start the Apply process in the standby database

SQL> alter database recover managed standby database disconnect;

Database altered.

SQL>

10.3.2 Verify data guard functionality and configuration

On Standby:

SQL> select sequence#, applied, first_time, next_time

from v$archived_log order by sequence#;

SEQUENCE# APPLIED FIRST_TI NEXT_TIM

---------- --------- -------- --------

12 YES 25.10.21 25.10.21

13 YES 25.10.21 25.10.21

SQL>

On the primary: switch log files 2 or 3 times and check the archive logs listing

SYS@cdbdg> alter system switch logfile;

System altered.

SYS@cdbdg> archive log list

Database log mode Archive Mode

Automatic archival Enabled

Archive destination USE_DB_RECOVERY_FILE_DEST

Oldest online log sequence 14

Next log sequence to archive 16

Current log sequence 16

SYS@cdbdg>

On Standby, verify the applying of archive logs and monitor Redo Apply and Redo Transport services

SQL> select sequence#, applied, first_time, next_time

2 from v$archived_log order by sequence#;

SEQUENCE# APPLIED FIRST_TI NEXT_TIM

---------- --------- -------- --------

12 YES 25.10.21 25.10.21

13 YES 25.10.21 25.10.21

14 YES 25.10.21 25.10.21

15 IN-MEMORY 25.10.21 25.10.21

SQL>

SQL> select sequence#, applied, first_time, next_time

2 from v$archived_log order by sequence#;

SEQUENCE# APPLIED FIRST_TI NEXT_TIM

---------- --------- -------- --------

12 YES 25.10.21 25.10.21

13 YES 25.10.21 25.10.21

14 YES 25.10.21 25.10.21

15 YES 25.10.21 25.10.21

SQL>

SQL> select process, status, thread#, sequence#, block#, blocks

2 from v$managed_standby;

PROCESS STATUS THREAD# SEQUENCE# BLOCK# BLOCKS

--------- ------------ ---------- ---------- ---------- ----------

ARCH CONNECTED 0 0 0 0

DGRD ALLOCATED 0 0 0 0

DGRD ALLOCATED 0 0 0 0

ARCH CONNECTED 0 0 0 0

ARCH CLOSING 1 15 1 267

ARCH CLOSING 1 14 53248 1471

RFS IDLE 1 0 0 0

RFS IDLE 1 16 605 1

MRP0 APPLYING_LOG 1 16 605 409600

9 rows selected.

SQL>

10.3.3 Archive Log Deletion Policy

Configure archivelog deletion policy using RMAN on both servers

On Primary

[oracle@dbsrv1 admin]$ rman target /

Recovery Manager: Release 19.0.0.0.0 - Production on Mon Oct 25 15:32:35 2021

Version 19.3.0.0.0

Copyright (c) 1982, 2019, Oracle and/or its affiliates. All rights reserved.

connected to target database: CDBDG (DBID=704795239)

RMAN> show ARCHIVELOG DELETION POLICY;

RMAN configuration parameters for database with db_unique_name CDBDG are:

CONFIGURE ARCHIVELOG DELETION POLICY TO NONE; # default

RMAN> CONFIGURE ARCHIVELOG DELETION POLICY TO APPLIED ON ALL STANDBY;

new RMAN configuration parameters:

CONFIGURE ARCHIVELOG DELETION POLICY TO APPLIED ON ALL STANDBY;

new RMAN configuration parameters are successfully stored

RMAN> show ARCHIVELOG DELETION POLICY;

RMAN configuration parameters for database with db_unique_name CDBDG are:

CONFIGURE ARCHIVELOG DELETION POLICY TO APPLIED ON ALL STANDBY;

RMAN>

On Standby

[oracle@dbsrv2 ~]$ export ORACLE_SID=cdbdg

[oracle@dbsrv2 ~]$ rman TARGET /

Recovery Manager: Release 19.0.0.0.0 - Production on Mon Oct 25 15:34:30 2021

Version 19.3.0.0.0

Copyright (c) 1982, 2019, Oracle and/or its affiliates. All rights reserved.

connected to target database: CDBDG (DBID=704795239, not open)

RMAN> show ARCHIVELOG DELETION POLICY;

RMAN configuration parameters for database with db_unique_name CDBDG_STBY are:

CONFIGURE ARCHIVELOG DELETION POLICY TO NONE; # default

RMAN> CONFIGURE ARCHIVELOG DELETION POLICY TO APPLIED ON ALL STANDBY;

new RMAN configuration parameters:

CONFIGURE ARCHIVELOG DELETION POLICY TO APPLIED ON ALL STANDBY;

new RMAN configuration parameters are successfully stored

RMAN> show ARCHIVELOG DELETION POLICY;

RMAN configuration parameters for database with db_unique_name CDBDG_STBY are:

CONFIGURE ARCHIVELOG DELETION POLICY TO APPLIED ON ALL STANDBY;

RMAN>

10.3.4 Create spfile on ASM and register the standby database in grid infrastructure

SQL> show parameter spfile

NAME TYPE VALUE

--------------------------- --------- ------------------------------

spfile string /u01/app/oracle/product/19.3.0

/db_1/dbs/spfilecdbdg.ora

SQL>

Spfile location on primary

NAME TYPE VALUE

-------------------- ----------- ------------------------------------

spfile string +DATA/CDBDG/PARAMETERFILE

/spfile.269.1086651125

SYS@cdbdg>

ASM directory on standby is empty

ASMCMD [+DATA] > ls -l CDBDG_STBY/PARAMETERFILE/

ASMCMD [+DATA] > exit

SQL> create pfile='/home/oracle/spfile_after_standby.ora' from spfile;

File created.

SQL> !ls -lrt

-rw-r--r--. 1 oracle asmadmin 1563 Oct 25 16:07 spfile_after_standby.ora

SQL>

SQL> create spfile='+DATA/CDBDG_STBY/PARAMETERFILE/spfilecdbg_stby.ora' from pfile='/home/oracle/spfile_after_standby.ora';

File created.

SQL> show parameter pfile

NAME TYPE VALUE

-------------- ---------- ------------------------------------

Spfile string /u01/app/oracle/product/19.3.0/db_1

/dbs/spfilecdbdg.ora

SQL>

ASM directory on standby

ASMCMD [+DATA/CDBDG_STBY] > cd PARAMETERFILE/

ASMCMD [+DATA/CDBDG_STBY/PARAMETERFILE] > ls -l

Type Redund Striped Time Sys Name

PARAMETERFILE UNPROT COARSE OCT 25 16:00:00 Y spfile.276.1086884021

PARAMETERFILE UNPROT COARSE OCT 25 16:00:00 N spfilecdbg_stby.ora => +DATA/CDBDG_STBY/PARAMETERFILE/spfile.276.1086884021

ASMCMD [+DATA/CDBDG_STBY/PARAMETERFILE] >

10.3.5 Adding standby database in ASM restart

srvctl add database -db cdbdg_stby -oraclehome /u01/app/oracle/product/19.3.0/db_1 -startoption MOUNT -stopoption IMMEDIATE

-policy AUTOMATIC -role physical_standby -spfile +DATA/CDBDG_STBY/PARAMETERFILE/spfile.276.1086884021

[oracle@dbsrv2 ~]$ srvctl add database -db cdbdg_stby -dbname cdbdg

-instance cdbdg -oraclehome /u01/app/oracle/product/19.3.0/db_1 -startoption MOUNT -stopoption IMMEDIATE -policy AUTOMATIC -role physical_standby -spfile +DATA/CDBDG_STBY/PARAMETERFILE/spfile.276.1086884021

If the paramter do not fit at once, you can use srvctl modify add the parameters.

[oracle@dbsrv2 ~]$ srvctl config database -d cdbdg_stby

[oracle@dbsrv2 ~]$ srvctl modify database -db cdbdg_stby

[oracle@dbsrv2 ~]$ srvctl config database -d cdbdg_stby

Database unique name: cdbdg_stby

Database name: cdbdg

Oracle home: /u01/app/oracle/product/19.3.0/db_1

Oracle user: oracle

Spfile: +DATA/CDBDG_STBY/PARAMETERFILE/spfile.276.1086884021

Password file:

Domain:

Start options: mount

Stop options: immediate

Database role: PHYSICAL_STANDBY

Management policy: AUTOMATIC

Disk Groups:

Services:

OSDBA group: oinstall

OSOPER group:

Database instance: cdbdg

[oracle@dbsrv2 ~]$

[oracle@dbsrv2 ~]$ ps -ef | grep [p]mon

oracle 4474 1 0 08:44 ? 00:00:00 asm_pmon_+ASM

[oracle@dbsrv2 ~]$

Move or delete the first spfile file created from DUPLICATE

[oracle@dbsrv2 dbs]$ mv spfilecdbdg.ora spfilecdbdg.ora-from-RMAN-Duplicate

Restart the Standby, enable recovery and check Data guard functionality

[oracle@dbsrv2 ~]$ srvctl status database -d cdbdg_stby

Database is not running.

[oracle@dbsrv2 ~]$

[oracle@dbsrv2 ~]$ srvctl start database -d cdbdg_stby

[oracle@dbsrv2 ~]$

[oracle@dbsrv2 ~]$ srvctl status database -d cdbdg_stby

Database is running.

[oracle@dbsrv2 ~]$

[oracle@dbsrv2 ~]$ ps -ef | grep [p]mon

oracle 4474 1 0 08:44 ? 00:00:00 asm_pmon_+ASM

oracle 28044 1 0 16:47 ? 00:00:00 ora_pmon_cdbdg

[oracle@dbsrv2 ~]$

[oracle@dbsrv2 ~]$ srvctl config database -d cdbdg_stby

Database unique name: cdbdg_stby

Database name: cdbdg

Oracle home: /u01/app/oracle/product/19.3.0/db_1

Oracle user: oracle

Spfile: +DATA/CDBDG_STBY/PARAMETERFILE/spfile.276.1086884021

Password file:

Domain:

Start options: mount

Stop options: immediate

Database role: PHYSICAL_STANDBY

Management policy: AUTOMATIC

Disk Groups: DATA,FRA

Services:

OSDBA group: oinstall

OSOPER group:

Database instance: cdbdg

[oracle@dbsrv2 ~]$

[oracle@dbsrv2 ~]$ crsctl stat res -t

---------------------------------------------------------------------------

Name Target State Server State details

---------------------------------------------------------------------------

Local Resources

---------------------------------------------------------------------------

ora.DATA.dg

ONLINE ONLINE dbsrv2 STABLE

ora.FRA.dg

ONLINE ONLINE dbsrv2 STABLE

ora.LISTENER.lsnr

ONLINE ONLINE dbsrv2 STABLE

ora.OCR.dg

ONLINE ONLINE dbsrv2 STABLE

ora.asm

ONLINE ONLINE dbsrv2 Started,STABLE

ora.ons

OFFLINE OFFLINE dbsrv2 STABLE

---------------------------------------------------------------------------

Cluster Resources

---------------------------------------------------------------------------

ora.cdbdg_stby.db

1 ONLINE INTERMEDIATE dbsrv2 Mounted (Closed),HOME=

/u01/app/oracle/product

/19.3.0/db_1,STABLE

ora.cssd

1 ONLINE ONLINE dbsrv2 STABLE

ora.diskmon

1 OFFLINE OFFLINE STABLE

ora.evmd

1 ONLINE ONLINE dbsrv2 STABLE

---------------------------------------------------------------------------

[oracle@dbsrv2 ~]$

[oracle@dbsrv2 dbs]$ pwd

/u01/app/oracle/product/19.3.0/db_1/dbs

[oracle@dbsrv2 dbs]$

Do alter switch on primary 2 or 3 times and check the redo logs applied on the standby

SYS@cdbdg> alter system switch logfile;

System altered.

SYS@cdbdg> alter system switch logfile;

System altered.

SYS@cdbdg> alter system switch logfile;

System altered.

SYS@cdbdg> alter system switch logfile;

System altered.

SYS@cdbdg>

SYS@cdbdg> archive log list

Database log mode Archive Mode

Automatic archival Enabled

Archive destination USE_DB_RECOVERY_FILE_DEST

Oldest online log sequence 18

Next log sequence to archive 20

Current log sequence 20

SYS@cdbdg>

On the standby

SYS@cdbdg> select process, status, thread#, sequence#, block#, blocks

2 from v$managed_standby;

PROCESS STATUS THREAD# SEQUENCE# BLOCK# BLOCKS

--------- ------------ ---------- ---------- ---------- ----------

ARCH CLOSING 1 19 1 133

DGRD ALLOCATED 0 0 0 0

DGRD ALLOCATED 0 0 0 0

ARCH CONNECTED 0 0 0 0

ARCH CLOSING 1 18 1 35

ARCH CONNECTED 0 0 0 0

RFS IDLE 1 0 0 0

RFS IDLE 1 20 23072 1

MRP0 APPLYING_LOG 1 20 23072 409600

9 rows selected.

SYS@cdbdg> select sequence#, applied, first_time, next_time

2 from v$archived_log order by sequence#;

SEQUENCE# APPLIED FIRST_TI NEXT_TIM

---------- --------- -------- --------

12 YES 25.10.21 25.10.21

13 YES 25.10.21 25.10.21

14 YES 25.10.21 25.10.21

15 YES 25.10.21 25.10.21

16 YES 25.10.21 25.10.21

17 YES 25.10.21 25.10.21

18 YES 25.10.21 25.10.21

19 YES 25.10.21 25.10.21

8 rows selected.

SYS@cdbdg>

10.4 Additional post DUPLICATE checks and configuration on the standby site

10.4.1 check .bash_profile and set it properly with the ORACLE_SID

vi ~/.bash_profile

export ORACLE_SID=cdbdg_stby

10.4.2 Enable flashback database

sqlplus sys/oracle_4U as sysdba

select log_mode, flashback_on from v$database;

alter system set db_flashback_retention_target = 2880;

alter database recover managed standby database cancel;

alter database flashback on;

10.5 Stopping and Starting a data guard environment steps

1. Stop the standby database

srvctl stop database -d cdbdg_stby

2. stop the primary database

srvctl stop database -d cdbdg

3. shutdown the appliances

# shutdown – h now

or

# init 0

NOTE: every time the standby database is started (in MOUNT mode), the apply process (MRP) should be started:

alter database recover managed standby database disconnect;

Data Guard Broker configuration and role transitions (switchover, failover) will be in documented in part 3/3, due to the limitation of the Blog size.

###################################################

Here you can find the other articles:

Part 1:

https://ousseinioumarou68.wixsite.com/oracledbexperiences/post/data-guard-physical-standby-19c-setup-on-linux-8-4-using-the-data-guard-broker-part-1-of-3

Part 3:

https://ousseinioumarou68.wixsite.com/oracledbexperiences/post/data-guard-physical-standby-19c-data-guard-broker-configuration-switchover-failover-part-3-3

###################################################
